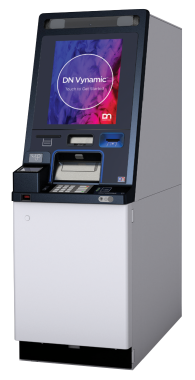

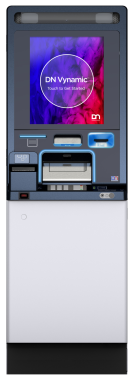

Diebold Nixdorf DN 400H

DN Series 400H is a multifunctional ATM with a recirculation system designed for indoor installation and to improve the development of a self-service banking channel. With the help of DN 400H, you can offer even more convenient services and services not only to individuals but also to small and medium-sized businesses.

DN 400H ATM is equipped with a 4th generation recycling module – RM4H. Currently, it is the most reliable cash recycling system that allows customers to withdraw or deposit in large amounts as quickly as possible.

Benefits

Integration

Thanks to the specialized modern software, this ATM can become an effective service point. Therefore ATM can be connected to all electronic banking services (Mobile banking, Internet banking). This allows customers to benefit from the omnichannel banking concept.

Cutting-edge

DN Series 400H can be equipped with a coin dispenser, contactless card reader, and QR code reader, which significantly expands the functionality of self-service devices.

Efficiency

The ATM uses high-capacity cassettes, which allows to reduce the frequency of cash collection service visits, and also provides a high level of availability of the self-service device.

Reliability

A modern cash recycling module and high-quality components provide the maximum level of device fault tolerance, which guarantees the availability of services and significantly reduces the service cost of the terminal network.

Personalization

Thanks to the modern design, intuitive interface, and software solutions, the user receives a convenient self-service device through which the bank can offer the personalized services he needs.

Security

A multi-layer security system, implemented both at the hardware and software levels, protects the device from the most common types of physical and cyber-attacks.

Device specifications

Recycling module

  • RM4H – 4th gen recycling module
  • Deposit/withdrawal of up to 300 banknotes per transaction
  • Utilization of up to 5 cassettes (4 recycling cassettes + 1 high-capacity cassette for all-in deposit)
  • Maximum recycling cassette capacity – 300mm
  • Maximum all-in cassette capacity – 500mm
  • CCMS (Cash Cycle Management Solutions) compatible cassettes
  • Dedicated cassette for forgotten or rejected banknotes
  • Recirculation of up to 4 banknotes
  • Detection of unknown objects in the cash slot
  • Banknote validation in accordance with regulations

Coin deposit/withdraw module

  • Coin dispensing module (optional)
  • Dispensing up to 4 denominations of coins
  • (Optional: 8 coin denominations)
  • Coin deposit (optional)

Physical Security

  • Cameras, recording client’s face, card reader, banknote dispenser
  • UL 291 Level 1, CEN I – IV, CEN I EX Gas, CEN III EX Gas, CEN IV EX Gas Safes
  • Alert system
  • Dispenser and card reader fraud protection
  • Electronic or mechanical locks
  • Recycling module lock
  • Anti cash trapping
  • Protection against burglary using gas and explosives
  • User Data Security
  • Rearview mirror
  • Modern PIN pad
  • PIN pad cover
  • Possibility to install anti-skimming device (Service Pack 1, 2, 3 or ActiveEdge™)

Cyber-security

  • Connection of trusted devices
  • Protected data transfer protocol
  • Authorization of service personnel with CrypTA Stick
  • DN VynamicTM Security Suite
  • TPM (Trusted Platform Module) module (ISO/IEC 11889 Compliant)

Display

  • 15” screen with function keys and/or touchscreen
  • Vertical or Horizontal 19” touchscreen
  • Vandal-proof screen protection
  • Supports multitouch if touchscreen is equipped
  • Standard or high-brightness screen
  • Coating that prevents the text from being read from different angles

PC Specifications

  • CPU: Intel® Celeron® / Intel® Core™ i3 / Intel® Core™ i5
  • Intel AMT (Active Management Technology)
  • HDD/SSD Drive
  • DVD Slot
  • Client Interaction
  • Headphone jack
  • Two-way video and voice communication (camera and microphone)
  • Illuminated card reader and cash slot

Identification

  • Motorized card reader (EMV Certificate)
  • Hybrid DIP card reader (EMV Certificate)
  • Contactless card reader (EMV Certificate)
  • Barcode scanner (1D/2D)
  • Fingerprint scanner

Printer

  • Thermal printer (80mm)
  • Journal printer
  • Printer for printing account statements
  • Deposit book printer
  • Front or Rear load
  • Service display 10.1”

System software

  • ProBase/C 1.4
  • Windows® 7 и 10

Functional software

  • Vynamic Software Suite
  • .iQ Family software solutions

Dimensions (height, width, length)

  • 1495mm x 500mm x 1035mm (UL)
  • 1445mm x 500mm x 1035mm (CEN)
