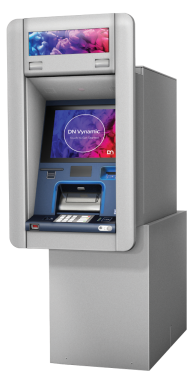

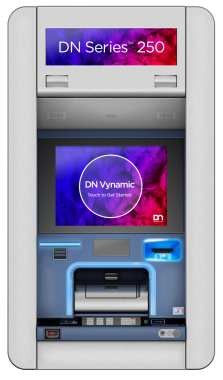

Diebold Nixdorf DN 250H

DN Series 250H is a compact, through-the-wall (TTW) ATM with a recirculating system that can be used for self-service banking channel development. The device is ready-to-install modern software that expands the ATM functionality, which makes it possible to handle part of the operations of a bank branch.

DN 250H is equipped with a 4th gen. recirculation module – RM4H. Currently, it is the most reliable cash recycling system that allows customers to withdraw or deposit in large amounts as quickly as possible.

The device can be easily integrated into the traditional banking environment and provides users with fast and convenient access to financial services.



Thanks to the modern design, intuitive interface, and software solutions, the user receives a convenient self-service device through which the bank can offer personalized services.


A modern cash recycling module and high-quality components provide the maximum level of device fault tolerance, which guarantees the availability of services and significantly reduces the service cost of the terminal network.


The ATM uses high-capacity cassettes, which allows to reduce the frequency of cash collection service visits, and also provides a high level of availability of the self-service device.


DN Series 250H can be equipped with a coin dispenser, contactless card reader, and QR code reader, which significantly expands the functionality of self-service devices.


Thanks to the specialized modern software, this ATM can become an effective service point. Therefore ATM can be connected to all electronic banking services (Mobile banking, Internet banking). This allows customers to benefit from the omnichannel banking concept.


A multi-layer security system, implemented both at the hardware and software levels, protects the device from the most common types of physical and cyber-attacks.

Device specifications

Recycling module

  • RM4H – 4th gen recycling module
  • Deposit/withdrawal of up to 300 banknotes per transaction
  • Utilization of up to 5 cassettes (4 recycling cassettes + 1 high-capacity deposit cassette)
  • Maximum recycling cassette capacity – 300mm
  • Maximum all-in cassette capacity – 500mm
  • CCMS (Cash Cycle Management Solutions) compatible cassettes
  • Dedicated cassette for forgotten or rejected banknotes
  • Recirculation of up to 4 banknotes
  • Detection of unknown objects in the cash slot
  • Banknote validation in accordance with regulations

Physical Security

  • Cameras recording: client’s face, card reader, banknote dispenser
  • UL 291 Level 1, CEN I – IV, CEN I EX Gas, CEN III EX Gas, CEN IV EX Gas Safes
  • Alert system
  • Dispenser and card reader fraud protection
  • Electronic or mechanical locks
  • Recycling module lock
  • Anti Cash Trapping
  • Protection against burglary using gas and explosives

User Data Security

  • Rearview mirror
  • Modern PIN pad
  • PIN pad cover
  • Possibility to install anti-skimming device (Service Pack 1, 2, 3 or ActiveEdge™)


  • Connection of trusted devices
  • Protected data transfer protocol
  • Authorization of service personnel with CrypTA Stick
  • DN VynamicTM Security Suite
  • TPM (Trusted Platform Module) module (ISO/IEC 11889 Compliant)


  • 15” screen with function keys and/or touchscreen
  • Vandal-proof screen protection
  • Supports multitouch if touchscreen-equipped
  • Standard or high-brightness screen
  • Coating that prevents the text from being read from different angles

PC Specifications

  • CPU: Intel® Celeron® / Intel® Core™ i3 / Intel® Core™ i5
  • Intel AMT (Active Management Technology)
  • HDD/SSD Drive
  • DVD Slot

Client Interaction

  • Headphone jack
  • Two-way video and voice communication (camera and microphone)
  • Illuminated card reader and cash slot


  • Motorized card reader (EMV Certificate)
  • Hybrid DIP card reader (EMV Certificate)
  • Contactless card reader (EMV Certificate)
  • Barcode scanner (1D/2D)
  • Fingerprint scanner


  • Thermal receipt printer (80mm)
  • Journal printer


  • Rear load
  • Service display 10.1”

System software

  • ProBase/C 1.4
  • Windows® 7 и 10

Functional software

  • Vynamic Software Suite
  • .iQ Family software solutions

Dimensions (height, width)

  • 739 x 478 mm


Where are these ATMs manufactured?
The presented devices are manufactured at the Diebold Nixdorf plant in Paderborn, Germany, which guarantees high production and quality control standards of these devices for customers in more than 100 countries.
How are Recycler ATMs different from other types of ATMs?
Cash recycling systems, or ATMs with recycling function, have the technical ability to implement a closed cycle of banknote circulation, allowing users to withdraw banknotes previously received from other users of the device. This feature has a significant economic effect by reducing the number of required collections.
Can I choose my own unique ATM configuration when ordering?
Each model of Diebold Nixdorf ATMs has ample opportunities for technical configuration for specific customer needs. This mainly applies to the set of peripheral devices, which determines the unique functionality for the bank's clients.
Is it possible to order spare parts for this ATM?
Of course, we will be happy to help with the selection, ordering and delivery of the necessary spare parts. You can contact the spare parts sales department by e-mail spareparts@5ci.lt or by filling the form on this page.
