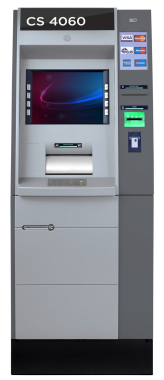

Diebold Nixdorf CS 4060

Diebold Nixdorf CS 4060 is a self-service device with cash recycling system designed for indoor use.



The device can be configured either in front-load or rear-load configuration, which helps to adapt the device for different locations.


Feature-set can be extended thanks to various software solutions optimized for this specific ATM model. Thus, bank services such as account replenishment, money transfer, currency exchange, payments of bills, and purchases can be implemented within this software.


CS 4060 is one of the most efficient cash recycling terminals on the market and can be used in a multi-currency environment when it is important to provide customers with national and foreign currency.

Device specifications

Banknote Processing

  • Deposit/withdrawal – up to 200 banknotes
  • Detector of unknown objects in the cash dispenser
  • Processing of 7 denominations in recycling mode
  • Modes: cash deposit, cash withdrawal, closed cycle of cash circulation
  • Cash calculation speed: up to 10 banknotes/second
  • Maximum banknote size: 185 x 85mm
  • Minimum banknote size: 105 x 58mm

Banknote Storage

  • Maximum cassette capacity
    • Up to 305mm (standard cassette)
    • Up to 200mm (compact cassette)
  • Up to 3 cells for forgotten or rejected banknotes
  • Separate cassette for counterfeit banknotes
  • Cassette fill level indicator
  • Different cassette types (depending on the type, lock, seal, opening indicator, monitoring the shutter and lid, cash management memory)

Cash recognition

  • Banknote validation
  • Cash rejection
  • Serial number recognition
  • Processing of up to 120 denominations simultaneously


  • Ability to deposit and withdraw coins (with external storage)

Card reader

  • Motorized hybrid card reader (EMV Certificate)
  • Card reader illumination
  • Embossed shape that makes it difficult to install skimming devices
  • Ability to retract forgotten card
  • Card return in case of power shortage
  • Ability to write on HiCo magnetic stripe cards
  • Integrated device for contactless data reading
  • Hybrid DIP card reader (EMV Certificate)
  • Contactless card reader (EMV Certificate)


  • TFT LCD (15” or 17”)
  • Scaling function to fit different resolutions (VGA, SVGA, XGA)
  • 8 stainless steel function keys
  • Touchscreen


  • Thermal bicolor printer
  • Retraction of checks
  • Z-fold paper compatible
  • Dot-matrix printer


  • EPP Keyboard (EPP V6)
  • Keyboard
  • UL 291 Level 1, CEN L, CEN III, CEN IV Safes
  • Alarm system (hack, penetration, impact sensors)
  • Mechanical and electronic locks
  • Card Reader with fraud protection
  • Antiskimming device
  • EPP Keyboard cover (VISA compliant)
  • Rearview mirror
  • Coating that prevents the text from being read from different angles
  • Authorization of service personnel with CrypTA Stick
  • Cameras, recording client’s face, card reader, banknote dispenser

Dimensions (width, length, height)

  • 60.0 х 102.2 x 158.2 cm


  • 850 kg

Operating temperature range

  • +5 °C to +40 °C

Relative humidity

  • 5% to 85%

Power Supply

  • Voltage: 110-120 V~ / 220-240 V~
  • Frequency: 50-60 Hz
  • Uninterruptible Power Source (UPS)


Where are these ATMs manufactured?
The presented devices are manufactured at the Diebold Nixdorf plant in Paderborn, Germany, which guarantees high production and quality control standards of these devices for customers in more than 100 countries.
How are Recycler ATMs different from other types of ATMs?
Cash recycling systems, or ATMs with recycling function, have the technical ability to implement a closed cycle of banknote circulation, allowing users to withdraw banknotes previously received from other users of the device. This feature has a significant economic effect by reducing the number of required collections.
Can I choose my own unique ATM configuration when ordering?
Each model of Diebold Nixdorf ATMs has ample opportunities for technical configuration for specific customer needs. This mainly applies to the set of peripheral devices, which determines the unique functionality for the bank's clients.
Is it possible to order spare parts for this ATM?
Of course, we will be happy to help with the selection, ordering and delivery of the necessary spare parts. You can contact the spare parts sales department by e-mail spareparts@5ci.lt or by filling the form on this page.
